Streaming

Streamwell accepts RTMP and RTMPS input streams with H.264 video (up to 4K/60) + AAC audio (up to 8 channels). It also accepts SRT caller streams, now with added support for HEVC video, 10-bit colour (P010) and HDR (Rec. 2100). Finally, the new experimental WHIP standard is accepted as well. These different streaming options can be enabled or disabled by an administrator.

The most popular way to stream in is to use OBS, a free open-source video mixer application. If you are new to OBS, here are some quick steps to get you moving.

  • Once installed, open OBS and bypass any setup wizards.

  • Add a source like a Webcam (Video Capture Device) or drag a video file in.

  • Click Settings => Output, and change the Output Mode to Advanced

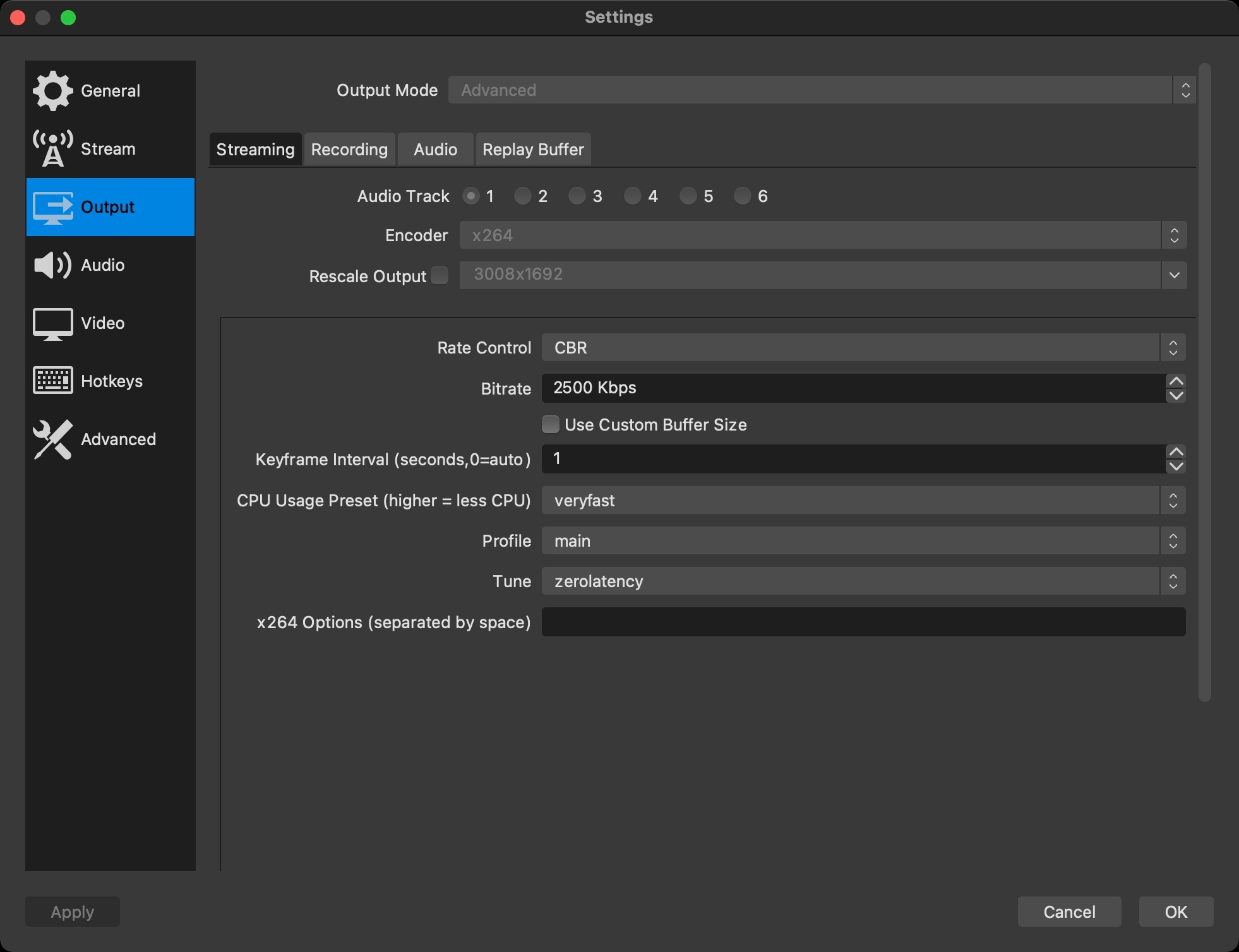

  • Set the streaming options as shown below, or leave them as default if not shown (see below for more info on Streaming settings)

  • Click Settings => Stream, and set the Service to ‘Custom…’

  • Enter your Server URL under Server, and copy/paste a Stream Key of your choosing for the channel you’d like to stream to. For SRT URLs just copy/paste the full URL in the 'Server' field and leave the 'Stream Key' field blank. For RTMP URLs the server URL is everything up to and including 'live', and the Stream Key is everything after the slash (do not include the "/" in the stream key). Within each channel there is a 'show' button next to the stream key which reveals these components already separated for an easy click-to-copy:

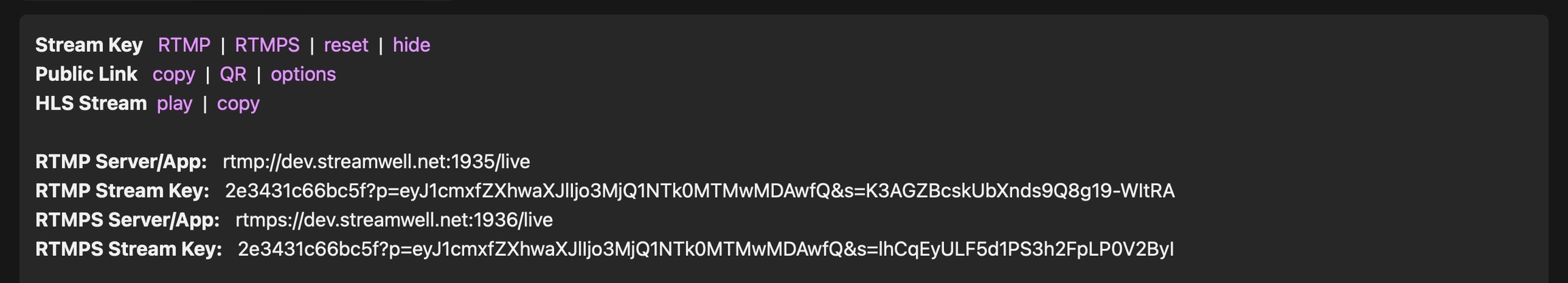

Grab the full URL by clicking 'RTMP | RTMPS', or you can click to copy the server / stream key components individually.

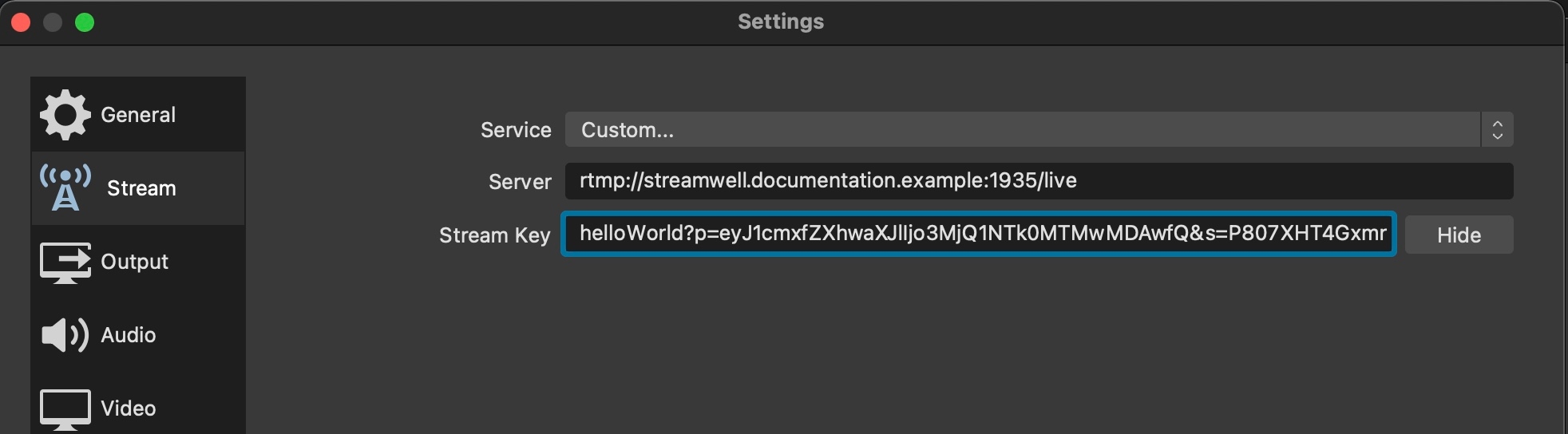

Paste them here in OBS

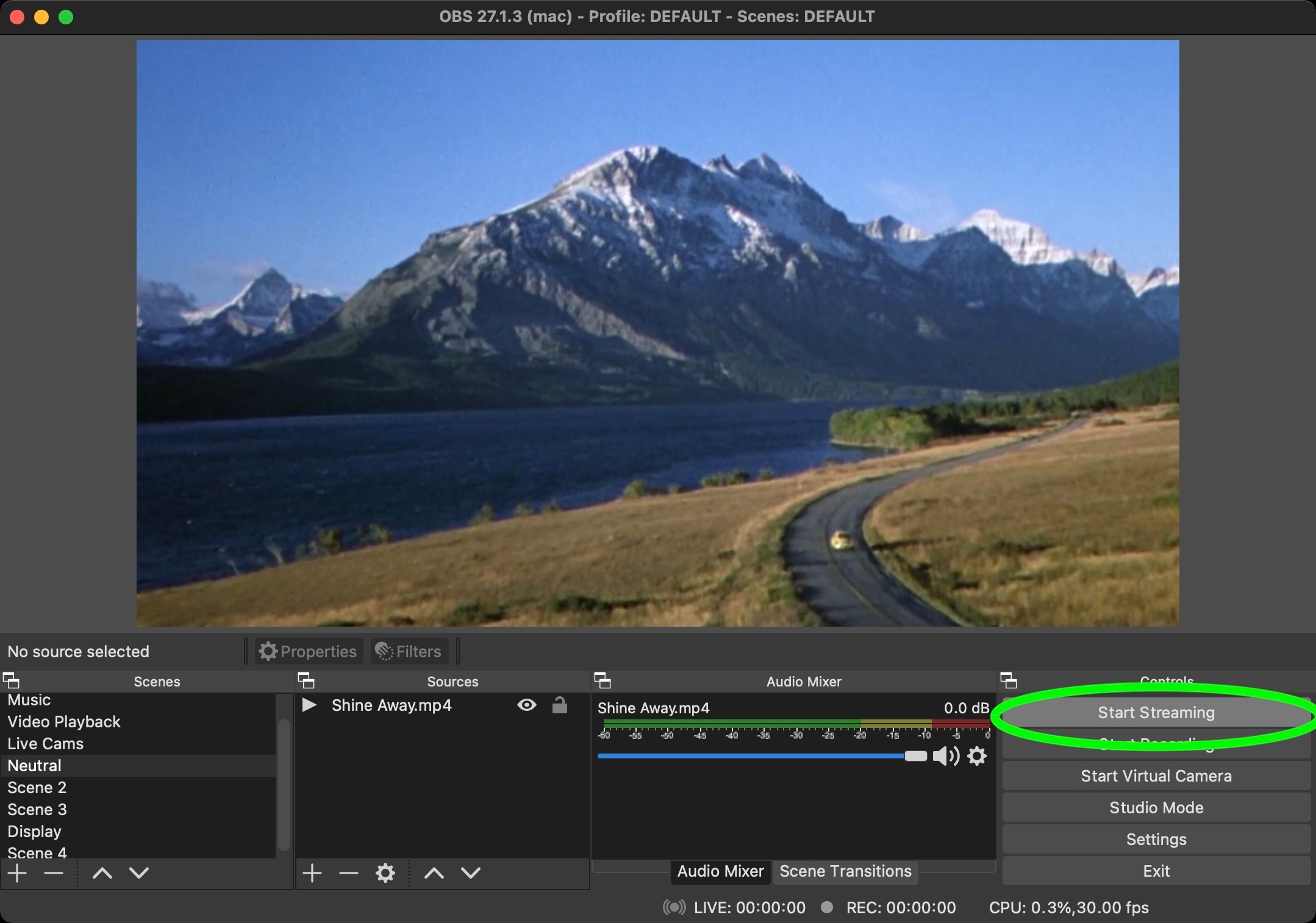

  • Click ‘Start Streaming’ and you should now be live - hello world!

W!

Whether you are using OBS or another software or hardware encoder, always keep these requirements in mind for the sub-second latency streaming to function correctly:

  • H264 Encoder (x264, Apple VT H264 Encoder, NVIDIA NVENC H264)

  • Resolutions up to 4K, frame rates up to 60FPS

  • AAC, OPUS or MP3 audio

  • Keyframe interval of 1 or 2 seconds (higher interval will cause playback issues)

  • No B-Frames (use of B-Frames will cause playback issues)

  • 'baseline' or 'main' profile (avoid using 'high' profile)

  • (Optional) 'zerolatency' x264 tuning option

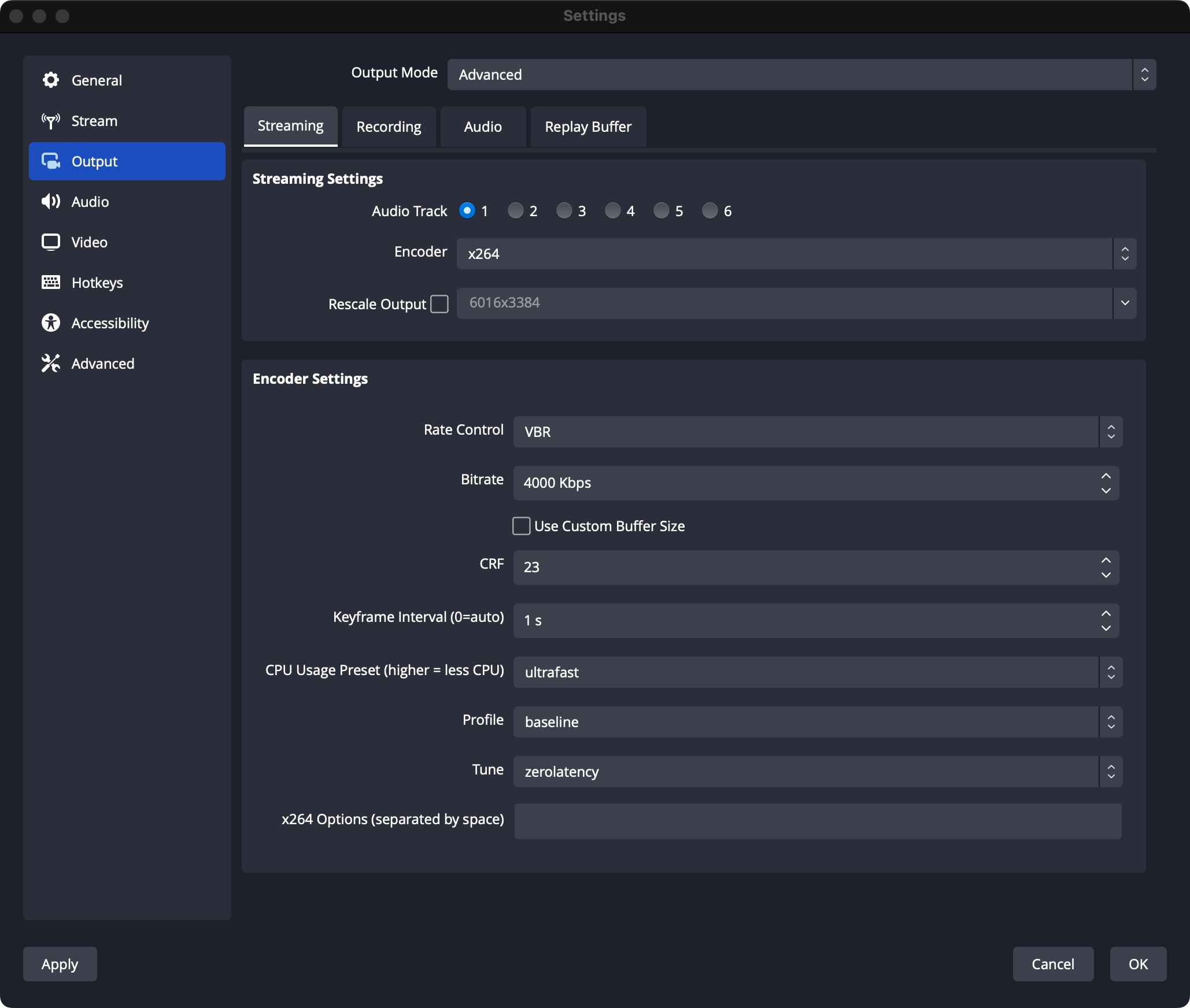

Set up your Stream encoding settings under Settings -> Output (Advanced Mode)

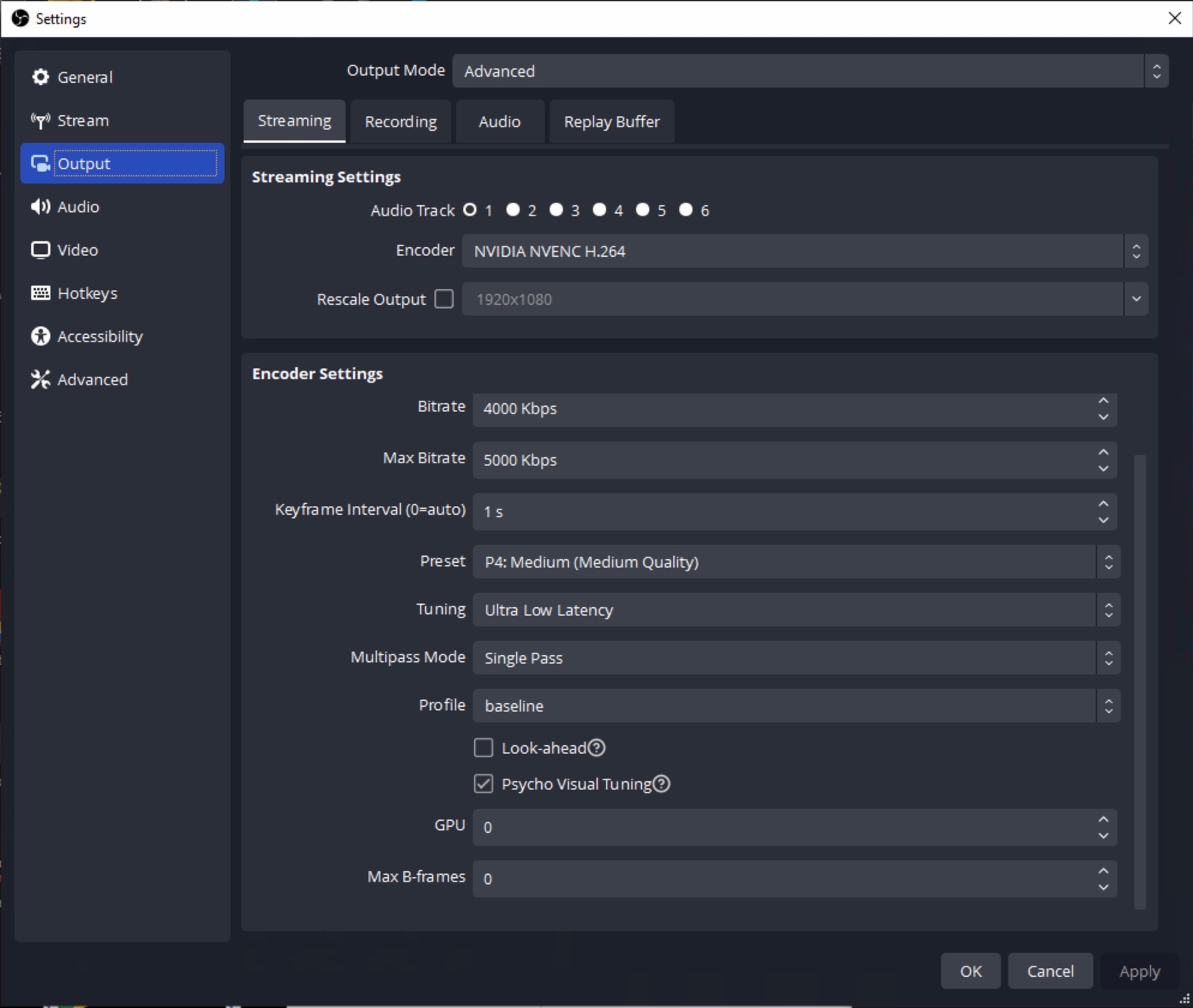

If you have an NVIDIA GPU, you might see an option for the NVIDIA NVENC encoder which is great for handling the streaming workload without taking as much of your CPU.

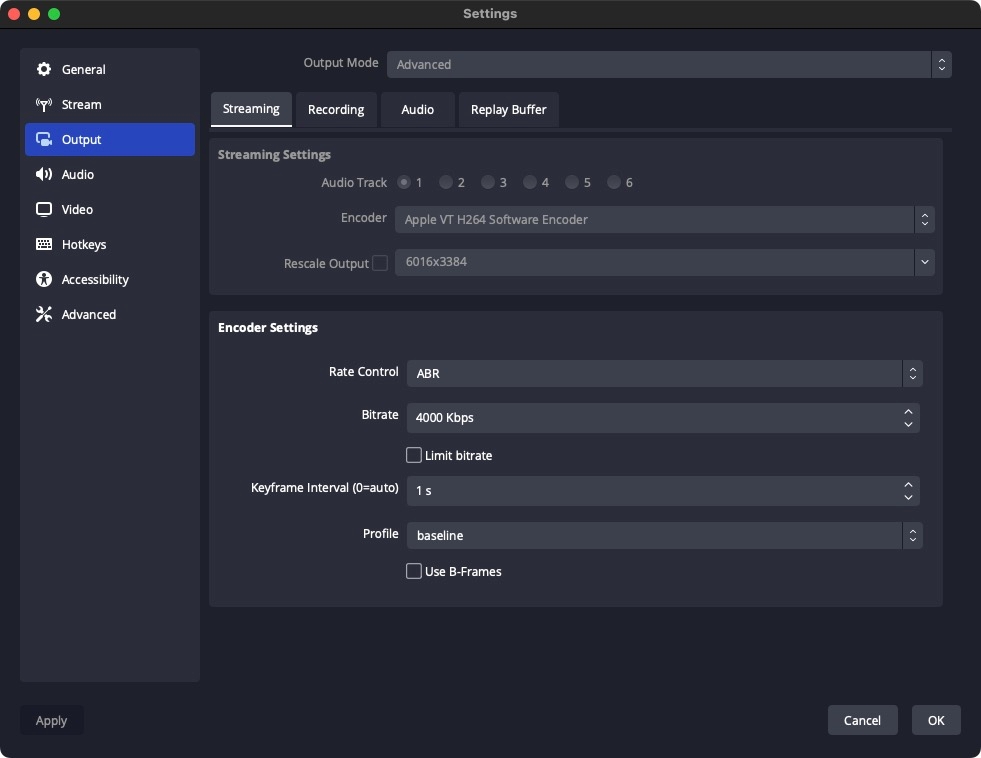

On macOS, you might see an option for the Apple VT H264 Software / Hardware encoder, another good option for offloading some of the encoding workload from the main CPU:

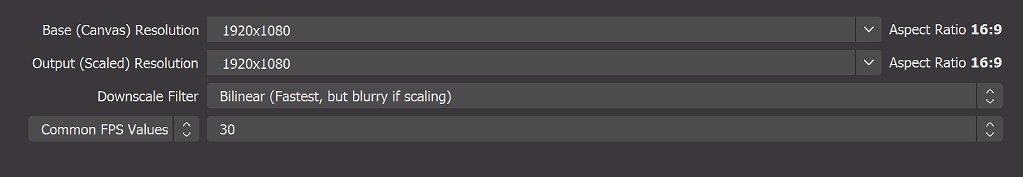

You can change your Output Resolution and Frame Rate under Settings -> Video.

Choosing the Right Bitrate

Streamwell can handle incoming stream bitrates of 100Mbps or more. However in real-world scenarios you need to consider your network capacity, number of viewers and what their internet connectivity will be like.

Here are some recommended bitrates depending on resolution and frame rate. Start with these and move up or down to suit your use case. Each 8000 Kbps / 8Mbps represents a real-world speed of one megabyte per second of video per viewer.

1080p

24/30 fps : 4000 Kbps (recommended for best results) 60 fps: 6000 Kbps

720p

24/30fps: 2500 Kbps 60fps: 4000 Kbps

4K / 2160p

24/30 fps: 12000-16000 Kbps 60fps: 20000-24000 Kbps

If you are using Streamwell in the Cloud: while your server is licensed up to 25 or 100 viewers it also comes with a maximum guaranteed thoughput based on a data rate of 4000 Kbps / 4Mbps per viewer. Streaming ultra-high bitrates that go beyond your maximum speed (100Mbps for 25-viewer plans, 500Mbps for 100-viewer plans) could violate the fair-use terms which may cause your server to be shut down unexpectedly.

Note on HEVC (H265) Streaming

When streaming with HEVC, the stream latency will be around 2-3 seconds as playback occurs over HLS instead of WebRTC. Google Chrome is recommended for all participants, as well as a robust computer / viewing device as playing back HEVC is far more taxing on the CPU/GPU, especially when using 10-bit colour.

NDI

For editors and creative professionals using software like Adobe Premiere or Final Cut Pro, see Streaming with NDI for a step by step tutorial on enabling NDI streams to Streamwell.
